SmallRig Cage for Panasonic Lumix DC-S1 and S1R CCP2345
1. Form-Fitted Full Cage for Panasonic S1 and S1R
2. 1/4"-20 & 3/8"-16 & Arri locating Accessory Threads
3. Integrated Cold Shoe and Nato Rail

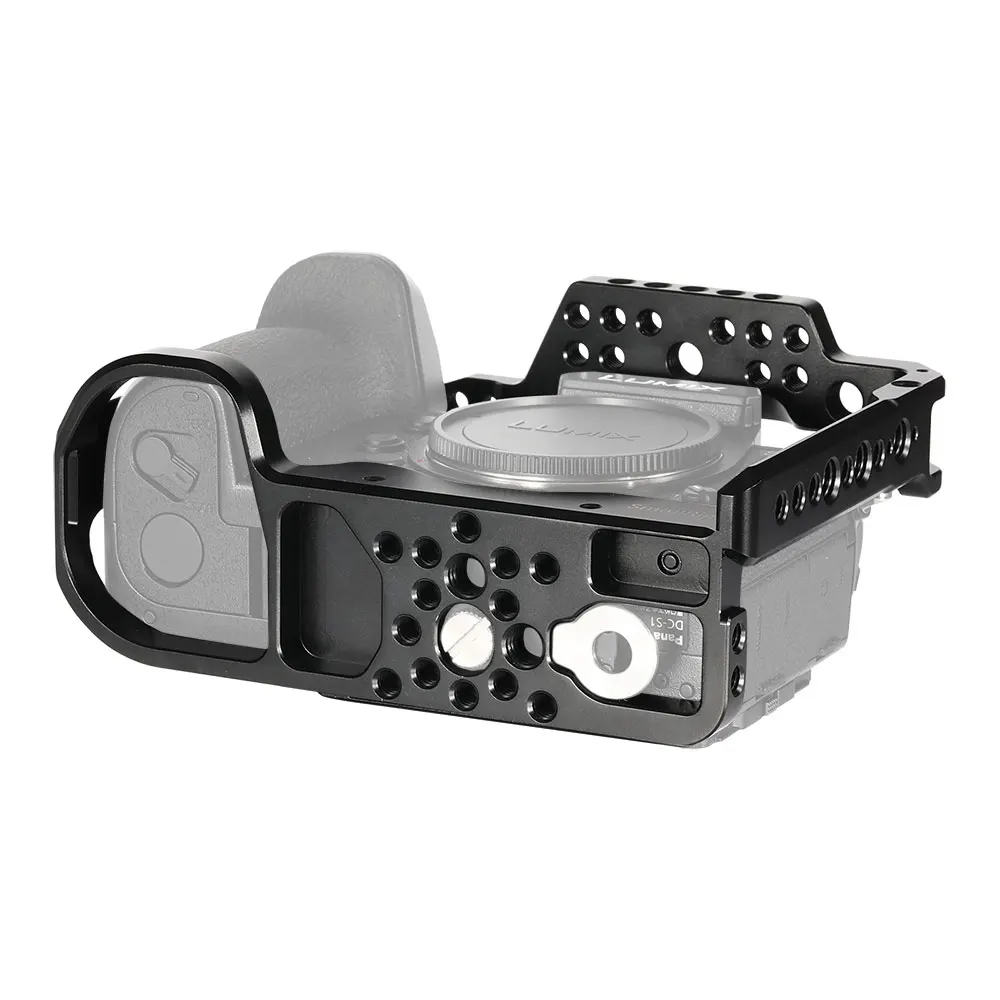

4. Secures to Bottom of Camera and a m2.5 Threads on the Side to Prevent Twisting
5. Built-in Flat Screw Driver on the Bottom

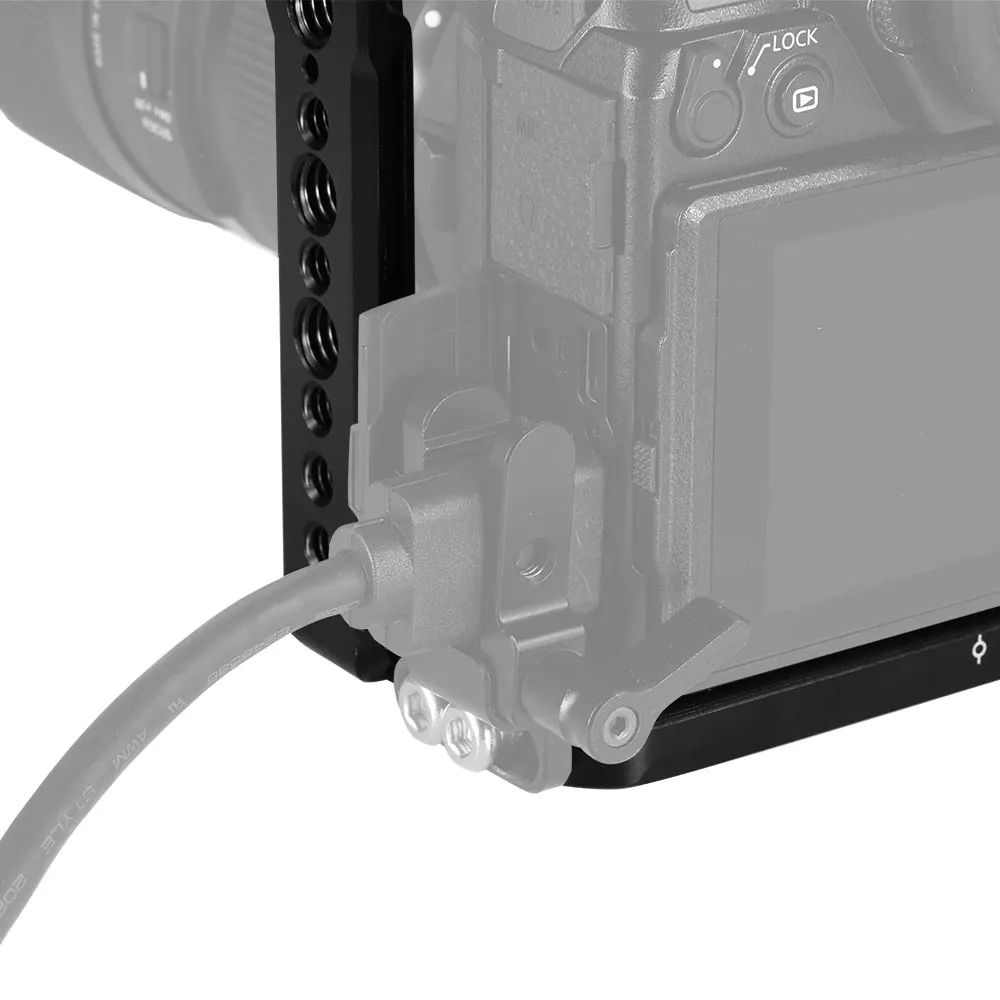

6. Optional HDMI Cable Clamp 1679

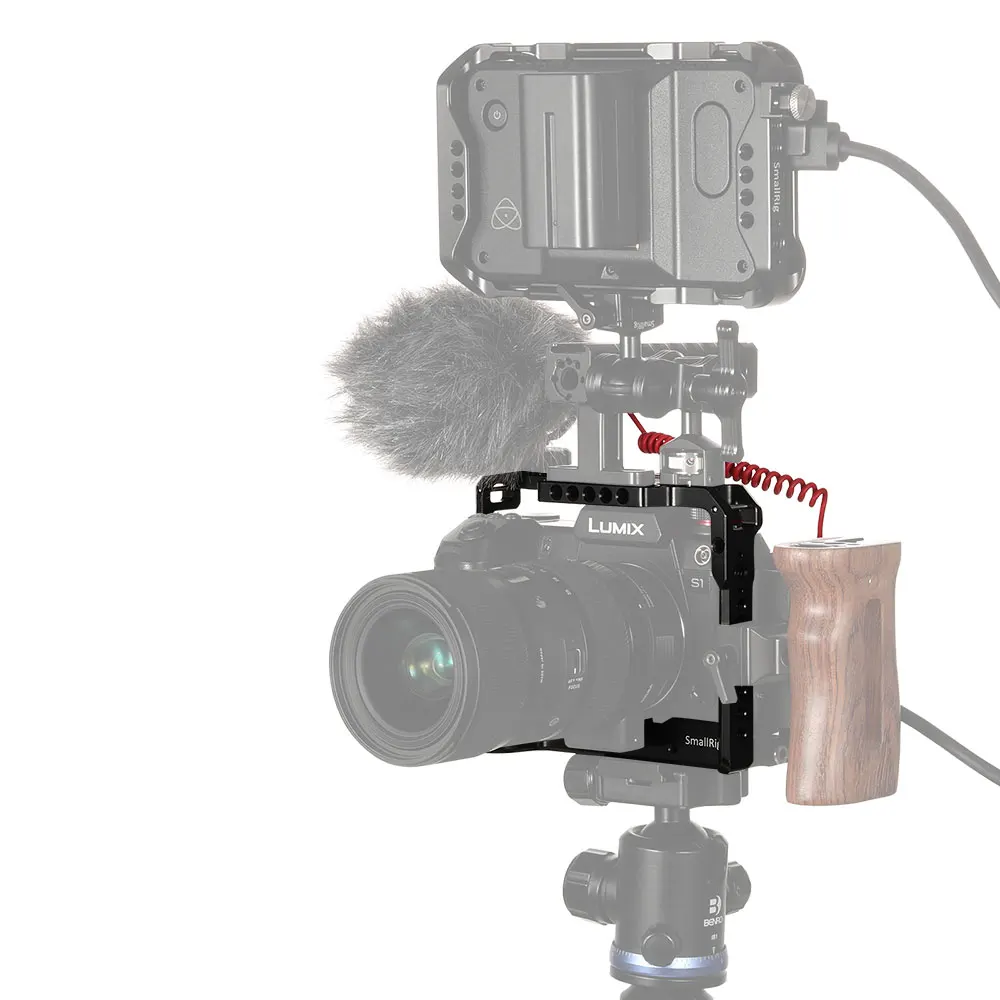

SmallRig Cage for Panasonic Lumix DC-S1 and S1R CCP2345 is designed to provide protection and mounting threads for accessories such as monitor, microphone and light. The cage secures to the bottom of camera and features a m2.5 threads as a second lock point on the right side to prevent the camera from twisting. The cage features multiple 1/4"-20, 3/8"-16 and arri locating holes for accessory attachment, which allows you to mount accessories such as Cold Shoe 2260, Top Handle 1984 and Monitor Mount 2294. It integrates with a cold shoe for microphone and a nato rail on the left for Nato Handle 2187 and Magic Arm 2116. Additionally, the cage features strap slots on both sides for carry strap. The bottom of the cage provides 3/8"-16 and 1/4"-20 threads for tripod plates and a built-in flat screw driver for quick installation. Compatible with HDMI Cable Clamp 1679 and for Panasonic DMW-XLR1.
Designer: Tracy Joy
1.Please take off the strap ring on the right side of camera to install the cage.
2.Not compatible with GH5 XLR Helmet 2017, new XLR Helmet for S1 cage will coming soon.
3.Lens adapter support for Sigma MC-21 Lens Adapter (for Sigma EF-Mount Lenses to Leica L) will coming soon.
for Panasonic Lumix DC-S1 and S1R

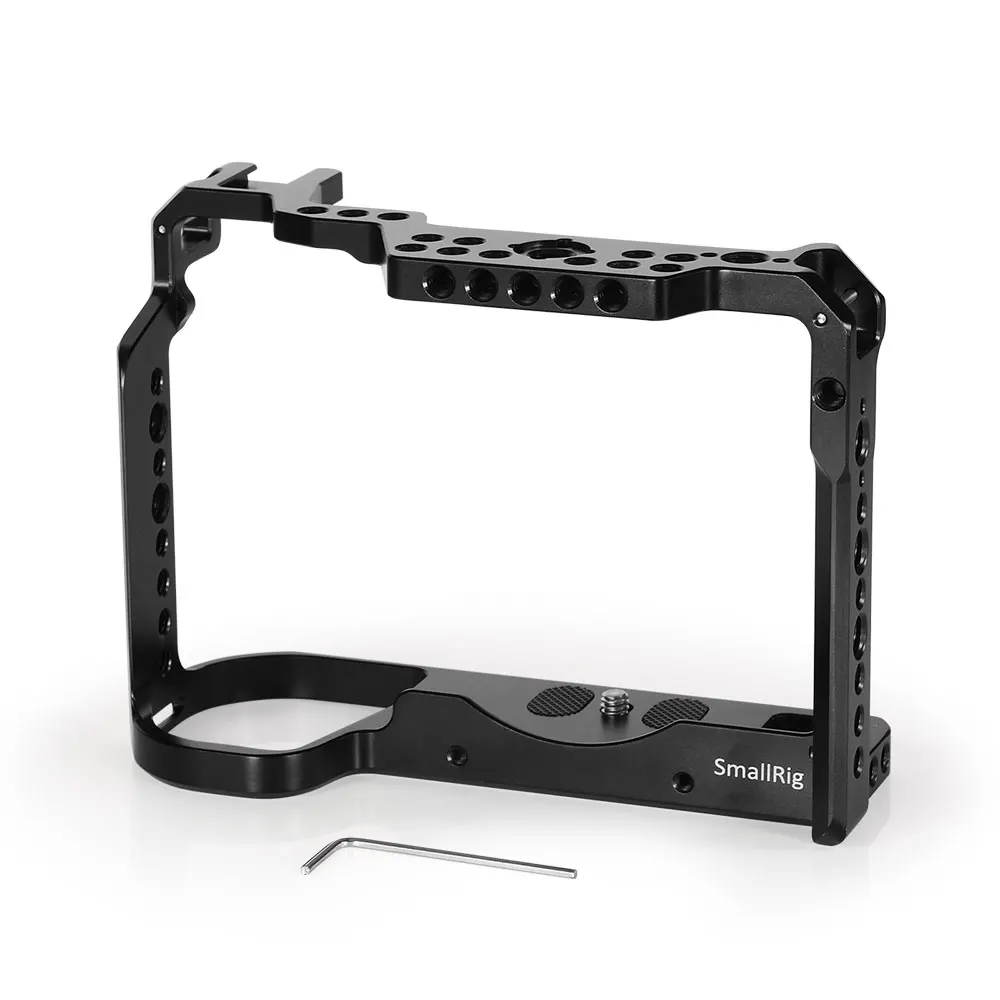

1 x Cage
1 X M2.5 Screw
1 x Hex Spanner

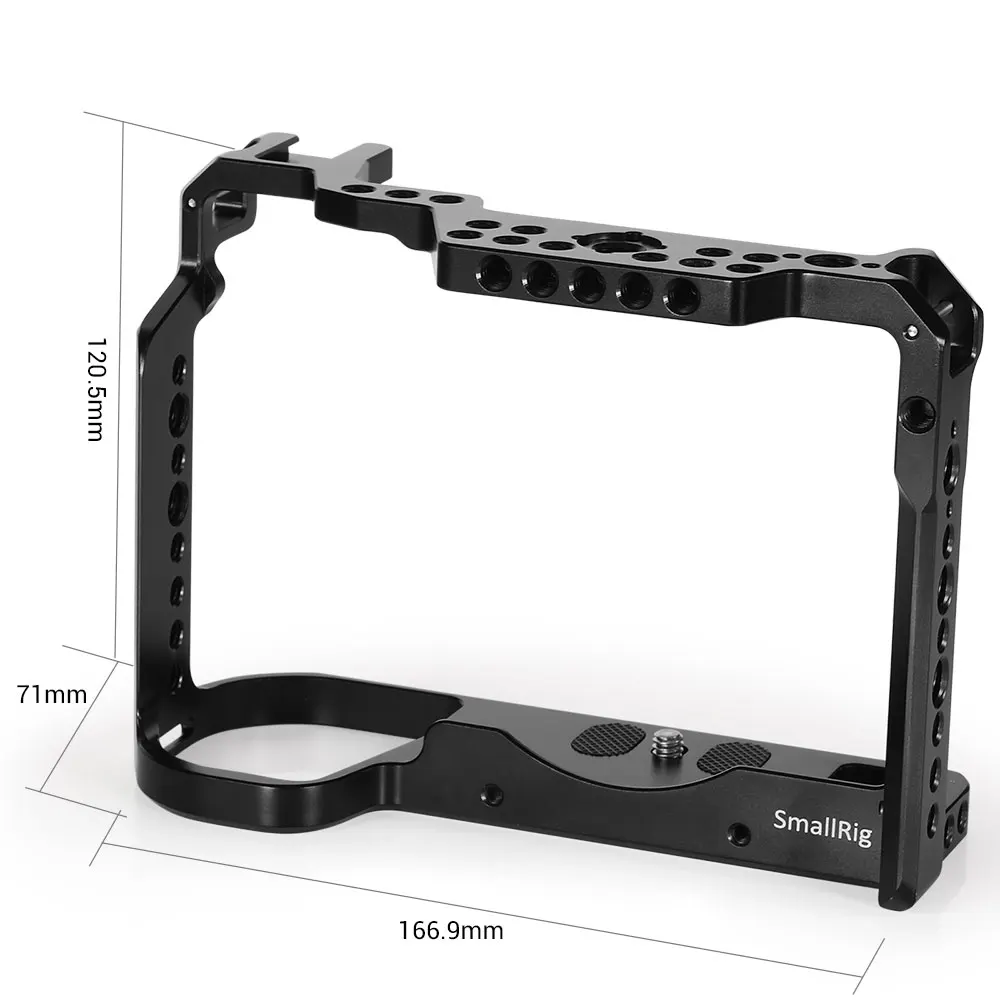

Product Dimensions: 166.9 x 120.5 x 71.0mm
Package Dimensions: 120 x 100 x 40mm
Net Weight: 234g
Package Weight: 344g
Material(s): Aluminum Alloy
